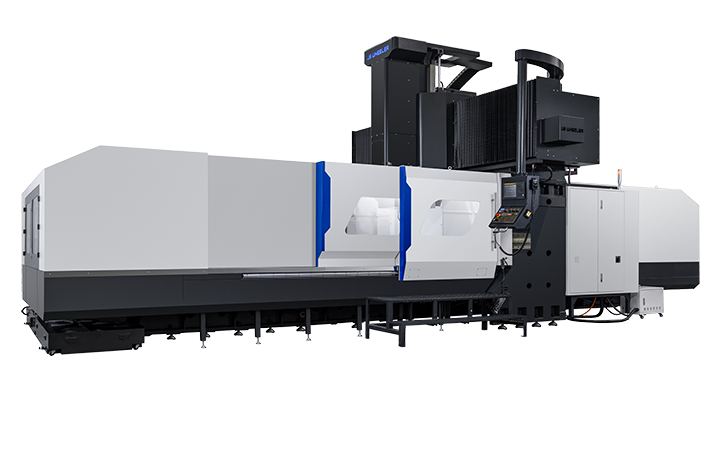

LM 6027
Characteristics
| Belt driven |
 |
| H |
Model variations
| 1410 |
| Category | Item | Specification |
| Capacity | Distance between columns[mm] | 2700 |
| Travels | Stroke X[mm] | 6000 |
| Stroke Y[mm] | 2700 | |
| Stroke Z[mm] | 1000 | |
| Rapid traverse(X)[m/min] | 10 | |
| Rapid traverse(Y)[m/min] | 10 | |
| Rapid traverse(Z)[m/min] | 10 | |
| Table | Workpiece allowable Load[kg] | 18000 |
| Table Size[mm] | 6000×2300 | |
| Category | CNC brand | Fanuc Siemens |
| CNC system | 0i-MF Plus | |
| Origin | Mainland China |
Milling spindle 1(H1)
| Spindle name | Taper | 7:24 taper No. 50 | Rotational speed[rpm] | 50~6000 | Power[kW] | 22!26 | Torque[Nm] | 140!223 | Transmission | Belt driven |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 50 | No. of tool storage[ea] | Tool diameter[mm] | Tool length[mm] | 300 | Tool weight[kg] | Tool change time(TTT)[s] | Tool change time(CTC)[s] |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
